Monday, June 30, 2008
Tuesday, June 24, 2008
Week 8 term 2 DTM Year 11
Last friday i finally finished my circuit and got it working. I am now up to attaching my circuit to my template box but it is proving difficult. The solar panel is very unpredictable. sometimes it charges the light, sometimes it doesn't. Yeasterday I started a new free hand design to show my final designs measurements. today I'm addind onto blog my pictures from friday and my materials justification. On friday I will finish putting my circuit into the template box.
Tuesday, June 17, 2008
Year 11 DTM Week 7 term 2
Last Friday in the double period I broke my circuits tracking so terry gave me a new circuit and i sucessfully soldered off the LED and the four wires. I then proceded to stripping eight new wires. Two wires to connect the circuit to the solar panel and six to make two y shaped peices to make the New LEDs in parallel. On tuesday I labeled my final circuit on free hand and struggled with solid works. It's infuriating. Today Im blogging and on Friday Im doing another two hour practical
Tuesday, June 10, 2008
Week 6 DTM Year 11

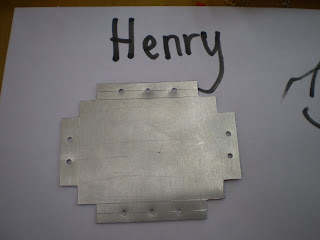

On tuesday I worked on my box Putting in the last rivets and attatched my base plate. Today im blogging by pictures from last week and on friday I will be modifying my circuit for the template light. I encounted a problem when I found out my box template wasn't straight flush. I had to use a wooden mallet to reshape my base plate.
Monday, June 2, 2008
Week 5 DTM Year 11
We didn't get to do the two hour practical on friday so on wednesday this week we will do a practiacal an do another double practical on friday but today we are blogging and getting our blog up to scratch for when our client comes over
